SI number

08 14 14 (180)

Consisting of:

1 = 0495629  Striking element

NOTE: (Punch number 1)

2 = 0495630 Striking element

NOTE: (Punch number 2)

3 = 0495631 Striking element

NOTE: (Punch number 3) Can only be ordered with the complete tool set 41 0 000 (part number 0495628 = punch numbers/letters/special characters).

4 = 0495632 Striking element

NOTE: (Punch number 4) Can only be ordered with the complete tool set 41 0 000 (part number 0495628 = punch numbers/letters/special characters).

3 = 0495633 Striking element

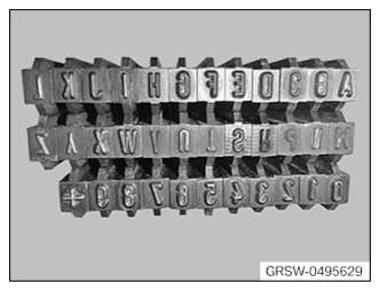

Fig 1: Identifying Striking Element (410000)
G11156922Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: (Punch number 3) Can only be ordered with the complete tool set 41 0 000 (part number 0495628 = punch numbers/letters/special characters).

6 = 0495634 Striking element

NOTE: (Punch number 6) Can only be ordered with the complete tool set 41 0 000 (part number 0495628 = punch numbers/letters/special characters).

7 = 0495635 Striking element

NOTE: (Punch number 7) Can only be ordered with the complete tool set 41 0 000 (part number 0495628 = punch numbers/letters/special characters).

8 = 0495636 Striking element

NOTE: (Punch number 8) Can only be ordered with the complete tool set 41 0 000 (part number 0495628 = punch numbers/letters/special characters).

9 = 0495637 Striking element

NOTE: (Punch number 9)

10= 0495639 Striking element

NOTE: (Punch number 0)

11= 0495640 Striking element

NOTE: (Punch letter A)

12= 0495641 Striking element

NOTE: (Punch letter B)

13= 0495642 Striking element

NOTE: (Punch letter C)

14= 0495643 Striking element

NOTE: (Punch letter D)

15= 0495644 Striking element

NOTE: (Punch letter E) Can only be ordered with the complete tool set 41 0 000 (part number 0495628 = punch numbers/letters/special characters).

16= 0495645 Striking element

NOTE: (Punch letter F) Can only be ordered with the complete tool set 41 0 000 (part number 0495628 = punch numbers/letters/special characters).

17= 0495646 Striking element

NOTE: (Punch letter G) Can only be ordered with the complete tool set 41 0 000 (part number 0495628 = punch numbers/letters/special characters).

18= 0495647 Striking element

NOTE: (Punch letter H) Can only be ordered with the complete tool set 41 0 000 (part number 0495628 = punch numbers/letters/special characters).

19= 0495649 Striking element

NOTE: (Punch letter i) Can only be ordered with the complete tool set 41 0 000 (part number 0495628 = punch numbers/letters/special characters).

20= 0495650 Striking element

NOTE: (Punch letter J) Can only be ordered with the complete tool set 41 0 000 (part number 0495628 = punch numbers/letters/special characters).

21= 0495651 Striking element

NOTE: (Punch letter K) Can only be ordered with the complete tool set 41 0 000 (part number 0495628 = punch numbers/letters/special characters).

22= 0495652 Striking element

NOTE: (Punch letter L)

23= 0495653 Striking element

NOTE: (Punch letter M) Can only be ordered with the complete tool set 41 0 000 (part number 0495628 = punch numbers/letters/special characters).

24= 0495654 Striking element

NOTE: (Punch letter N) Can only be ordered with the complete tool set 41 0 000 (part number 0495628 = punch numbers/letters/special characters).

25= 0495655 Striking element

NOTE: (Punch letter P) Can only be ordered with the complete tool set 41 0 000 (part number 0495628 = punch numbers/letters/special characters).

26= 0495656 Striking element

NOTE: (Punch letter R) Can only be ordered with the complete tool set 41 0 000 (part number 0495628 = punch numbers/letters/special characters).

27= 0495657 Striking element

NOTE: (Punch letter S) Can only be ordered with the complete tool set 41 0 000 (part number 0495628 = punch numbers/letters/special characters).

28= 0495659 Striking element

NOTE: (Punch letter T) Can only be ordered with the complete tool set 41 0 000 (part number 0495628 = punch numbers/letters/special characters).

29= 0495660 Striking element

NOTE: (Punch letter U) Can only be ordered with the complete tool set 41 0 000 (part number 0495628 = punch numbers/letters/special characters).

30= 0495661 Striking element

NOTE: (Punch letter V) Can only be ordered with the complete tool set 41 0 000 (part number 0495628 = punch numbers/letters/special characters).

31= 0495662 Striking element

NOTE: (Punch letter W) Can only be ordered with the complete tool set 41 0 000 (part number 0495628 = punch numbers/letters/special characters).

32= 0495663 Striking element

NOTE: (Punch letter X) Can only be ordered with the complete tool set 41 0 000 (part number 0495628 = punch numbers/letters/special characters).

33= 0495664 Striking element

NOTE: (Punch letter Y) Can only be ordered with the complete tool set 41 0 000 (part number 0495628 = punch numbers/letters/special characters).

34= 0495665 Striking element

NOTE: (Punch letter Z) Can only be ordered with the complete tool set 41 0 000 (part number 0495628 = punch numbers/letters/special characters).

35= 0495666 Striking element

NOTE: (Punch numbers/letters/special characters) For punching device, e.g. 41 1 000 (41 1 002)
