41 33 051 Replacing left front panel
Necessary preliminary tasks:
- Remove DEFORMATION ELEMENT FOR BUMPER
- Remove CROSS-MEMBER UPPER SECTION
- Remove FRONT BUMPER MOUNTING
- Remove ENGINE COMPARTMENT LID LOCK
- Remove SENSOR

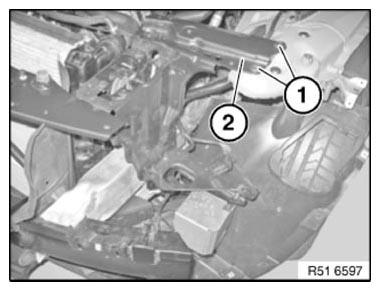

Release screws (1).
Tightening torque 51 64 1AZ .
Remove headlight mounting (2).
