51 48... Removing and installing/replacing sound insulation on cowl panel or windscreen

Special tools required:

51 0 300

Sound insulation can only be replaced with the following removed:

INSTRUMENT PANEL or
WINDSCREEN

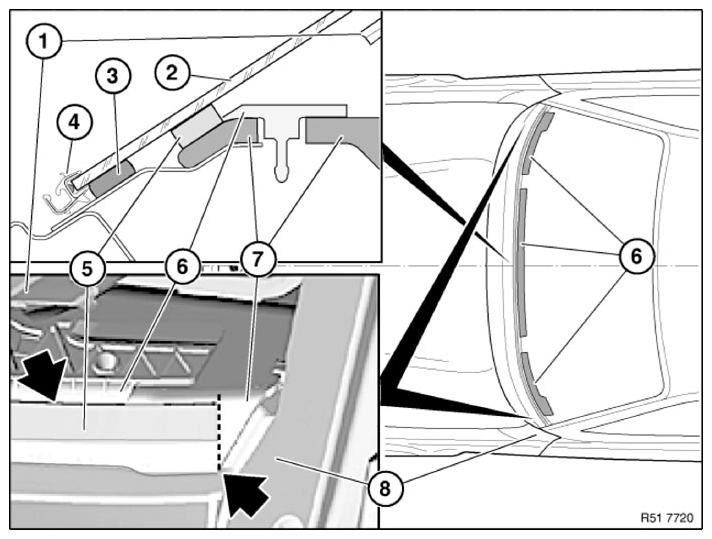

Fig 1: Locating Expanding Foam Tape

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Press down, or with replacement bond, expanding foam tape (5) just before installing the windscreen (2) with special tool 51 0 300 . Relaxed expanding foam tape could crush cement bead (3) (leaks, wind noises).

Replacement:

Stick new expanding foam tape (5) on sound insulation (7) along press-down elements (6).

Expanding foam tape (5) may only be stuck up to corner point of sound insulation (7).

Dashboard trim panel
Windscreen
Adhesive bead
Retaining strip, bottom
Expanding foam tape (sound insulation, cowl panel)
Press-down for sound insulation (7)
Sound insulation, bulkhead upper section
Side frame
