61 31 037 Removing and installing/replacing light control unit (X6 2015-2019)

NOTE: When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary tasks:

Reach behind the opening.

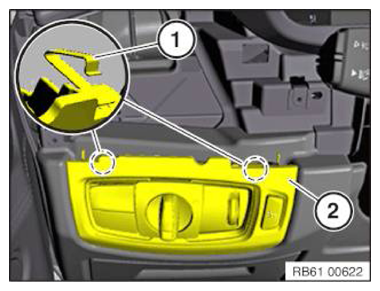

Unlock retaining clips (1) by pushing down.

Thread out trim with light operating unit (2).

Unlock and disconnect relevant connectors.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release light operating unit (1) at latch mechanisms (2).

Remove trim (5) from light operating unit (1).

Installation note:

Light operating unit (1) must be correctly locked in trim (5).

Guides (3) and clamps (4) on trim (5) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.
