11 14 010 Replacing sealing cap for vacuum pump (N55) (X6 xDrive 35i, X6 sDrive 35i)
Special tools required:
- 11 8 530
- 11 8 531
- 11 8 532
- 11 8 533
- 11 8 534
- 11 8 535
- 11 8 537
Necessary preliminary tasks:
- Remove FAN COWL .
- Remove drive belt TENSIONING DEVICES .
Removing sealing cap:
Prepare special tool 11 8 530.
Remove special tool 11 8 533 from special tool 11 8 532.
Install special tool 11 8 534.
Special tool 11 8 536 is not required.
Attach special tool 11 8 531 to long special tool 11 8 535.
Short special tool 11 8 535 (short); a 6 mm thick M10 washer must be placed underneath between crankcase and special tool 11 8 531.
special tool 11 8 537 must be positioned manually on sealing cap.
Screw in special tool 11 8 534.
Installing sealing cap:
Prepare special tool 11 8 530.
Remove special tool 11 8 534 from special tool.
Install special tools 11 8 533 and 11 8 532 .

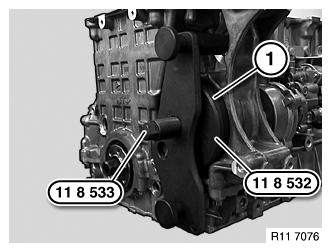

Screw in new sealing cap (1) with special tools 11 8 532 and 11 8 533 until flush with crankcase upper part.
Assemble engine.
