51 21 280 Removing and installing/replacing door stop on left or right front door (X6 2015-2019)

Necessary preliminary tasks:

Close door windows
Remove SOUND INSULATION IN FRONT AREA ONLY .

NOTE: Operations are shown for F10 as an example.
After disengaging door stop, use suitable means of preventing door from opening past its maximum permissible opening angle (risk of damaging paintwork or bodywork).

NOTE: Secure front door against falling closed.

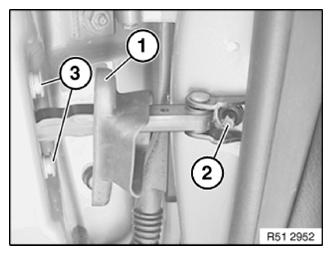

Lever out seal (1).

Release screw (2).

Tightening torque 51 21 3AZ .

Release screws (3).

Tightening torque 51 21 5AZ .

Installation note:

Seal (1) must not be damaged.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove door stop (1) via aperture (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Following parts of door retainer (3) must not be damaged:

Hinge
Thread

Courtesy of BMW OF NORTH AMERICA, INC.
