Removing and installing/replacing storage compartment in luggage compartment on left or right (X6 2015-2019)

Necessary preliminary tasks:

• Remove AUTOMATIC SOFT CLOSE DRIVE ON TAILGATE  (required for left storage compartment only)
• Remove FLAP IN LUGGAGE COMPARTMENT TRIM PANEL  (required for right storage compartment only)

Removal:

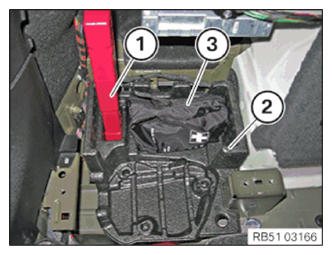

Left side:

Remove warning triangle (1).

Feed out storage compartment (2) towards top.

Remove first-aid kit (3).

Right side:

Release clips (1) and feed out storage compartment (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Left side:

Feed in storage compartment (2).

Insert first-aid kit (3).

Install warning triangle (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Right side:

Feed in storage compartment (2) and mount clips (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install AUTOMATIC SOFT CLOSE DRIVE ON TAILGATE .
• INSTALL FLAP IN RIGHT LUGGAGE COMPARTMENT TRIM PANEL
