Removing and installing/replacing trim for window guide of left or right rear door (X6 2015-2019)

Necessary preliminary tasks:

• Remove inner WINDOW CAVITY COVER STRIP .
• Remove COVER FROM WINDOW FRAME .
• Partially remove SOUND INSULATION .

Removal:

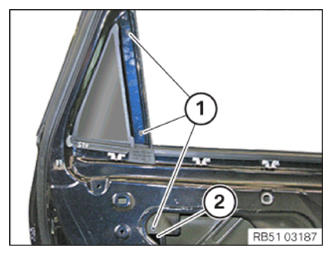

Pull out rubber guide (1) on trim (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Feed out trim (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in cover (2).

Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Mount rubber window seal (1) on trim (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install inner WEATHER STRIP .
• Install COVER ON WINDOW FRAME .
• Install SOUND INSULATION .
