51 34 191 Replacing left or right fixed door window glass in rear window frame (X6 2015-2019)

Special tools required:

51 3 220

Attention!

Notes on window bonding. Refer to INFORMATION ON VEHICLE PROTECTION (X6 2015-2019) , MATERIALS FOR BONDING WINDOW REP-ALG-RAF0151-5131HT03 - V.17 (X6 2015-2019) , NOTES ON HEAD-UP DISPLAY REP-REP-RAF0162-6230X01 - V.10 (X6 2015-2019) , SAFETY AT WORK (X6 2015-2019) and TOUCHING UP PAINTWORK DAMAGE REP-ALG-RAGRP99-9900XX1 - V.1 (X6 2015-2019) .
GENERAL PROCEDURE to dismantle/install bonded window glass

The following new parts/CONSUMABLES are required (sourcing reference BMW Parts Department).

Material	Quantity
Door window glass (after a replacement)	1
Small repair kit	1

Necessary preliminary tasks:

Remove COVER FOR WINDOW GUIDE .
Remove TRIM ON REAR WINDOW FRAME .
Remove rubber window seal for door window glass in area of fixed door window glass

Remove clamps (1).

Installation note:

Replace faulty clamps (1).

G11173065

Courtesy of BMW OF NORTH AMERICA, INC.

Remove foam seal (1).

Installation note:

Replace faulty foam seal (1).

G15052715

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Handle (2) is on the outer side of the door.
Handle (3) is on the inside of the door.

Slide cutting wire in area (1) through adhesive bead.

Feed cutting wire behind spacer of the door window glass.

Cut through adhesive bead in direction of arrow as far as possible towards the top.

G15052716

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Handle (1) is on the outer side of the door.
Handle (2) is on the inside of the door.

Cut through adhesive bead in direction of arrow as far as possible towards the bottom.

Remove door window glass (1).

G15052717

Courtesy of BMW OF NORTH AMERICA, INC.

Fold fixed side window glass (3) on top outwards so that handle (2) can be operated.

NOTE: Handle (1 and 2) is on the outer side of the door.

Cut through adhesive bead in direction of arrow.

Remove fixed side window glass (3).

G15052718

Courtesy of BMW OF NORTH AMERICA, INC.

Remove remnants from the window frame in the areas (1).

G10153711

Courtesy of BMW OF NORTH AMERICA, INC.

Overview for taping of door window ()

G10153713

Courtesy of BMW OF NORTH AMERICA, INC.

Position (1) corresponds to bead joint.

Cut	A - A
a [mm] = Position adhesive bead	2 ±1/along the contour window frame
b [mm] = Width adhesive bead	8 ±1
h [mm] = Height adhesive bead	15 ±1

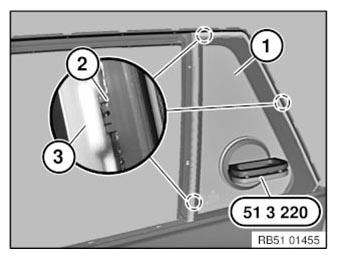

Carefully insert door window (1) with special tool 51 3 220 at bottom first, align sideways and insert latch mechanisms (2) in mountings (3).

Assemble the door immediately after installation of the door window glass.
