63 99 160 Replacing bulb for front left turning lights (X6 2015-2019)

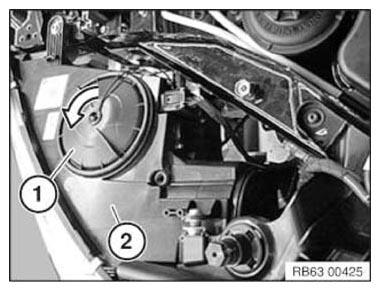

Turn cover (1) on headlights (2) in direction of arrow and remove.

Installation note:

Protective cap (1) must be correctly engaged.

Check seal.

Replace protective cap (1) if necessary.

Comply with INSTRUCTIONS FOR REPLACING THE PROTECTIVE CAP .

Courtesy of BMW OF NORTH AMERICA, INC.

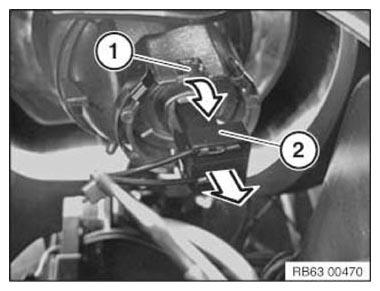

Remove bulb (1) in direction of arrow from latch mechanism (1).

Remove plug connection (2) with bulb in direction of arrow from headlight.

Courtesy of BMW OF NORTH AMERICA, INC.

Detach plug connection (1) from bulb (2).

Note BULB TYPE .

Courtesy of BMW OF NORTH AMERICA, INC.
