63 31 320 Replacing LED module in front door trim panel (left or right) (X6 2015-2019)
Necessary preliminary tasks:
- Remove FRONT DOOR TRIM PANEL .

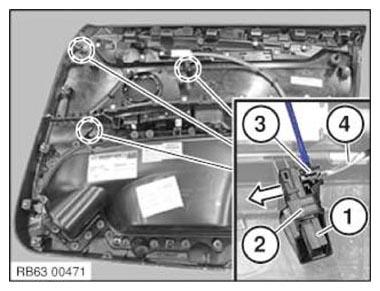

Release LED module (1) from bracket (2).
Carefully release latch mechanism (3) on LED module (1) with a suitable tool (e.g. screwdriver with 3 mm blade).
Pull LED module (1) in direction of arrow off fiber optic conductor (4).
Installation note:
Make sure fibre-optic conductor (4) latches correctly in LED module (1).
Bracket (2) and latch mechanisms (3) must not be missing or damaged.
Replacement:
Run test module:
- Service functions
- Body
- Lights
- Interior lighting
- Ambient light and interior lighting with light package
