63 21 260 Remove and install (replace) side panel rear light at left (X6 2015-2019)

IMPORTANT: Read and comply with notes on protection against electrostatic discharge (ESD PROTECTION ).

Necessary preliminary tasks:

IMPORTANT: Risk of paint damage!

Tape off entire area (1) with yellow plastic adhesive tape.

Courtesy of BMW OF NORTH AMERICA, INC.

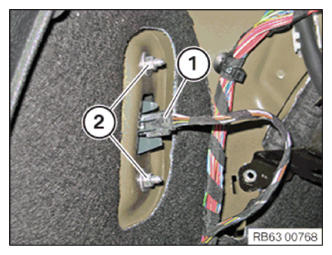

Disconnect plug connection (1).

Unscrew nuts (2).

Tightening torque 63 21 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Pull rear light (1) in direction of arrow from guides at top (2) and bottom (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Guides (1, 2) at rear light (3) must not be damaged or missing.

Make sure gap dimension (outer) is uniform all round between rear light (3) and side wall.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release latch mechanisms (1) at cover of water channel (2).

Remove cover of water channel (2) from rear light (3).

Installation note:

Catches (1) on water channel cover (2) must not be damaged or missing.

Make sure water channel cover (2) is correctly seated at rear light (3).

Courtesy of BMW OF NORTH AMERICA, INC.
