63 11 845 Replacing left LED fan (inner) (X6 2015-2019)
Turn protective cap (1) in the direction of arrow and remove.
IMPORTANT:
Risk of damage due to moisture penetration!
Installation note:
Check gasket, replace protective cap (1) if necessary.
Comply with INSTRUCTIONS FOR REPLACING THE PROTECTIVE CAP .
Turn protective cap (1) clockwise to limit position.
Protective cap must audibly lock!

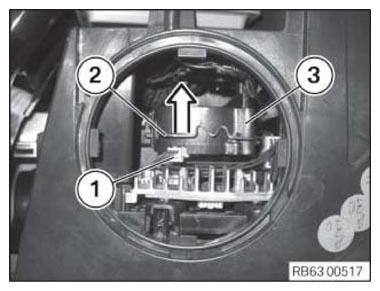

Unlock and disconnect the connector (1).
Release wire spring clip (2) in direction of arrow.
Remove LED fan (3) upward.
