63 11 840 Replacing left LED fan (outer) (X6 2015-2019)
Necessary preliminary tasks:
- Partially release WHEEL ARCH COVER .

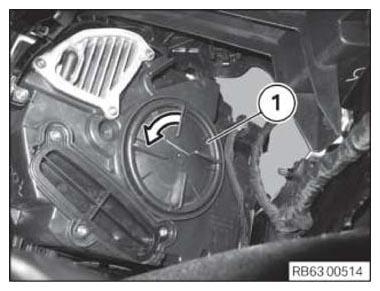

Turn protective cap (1) counter-clockwise and remove.
IMPORTANT:
Risk of damage due to moisture penetration!
Installation note:
Check gasket, replace protective cap (1) if necessary.
Comply with INSTRUCTIONS FOR REPLACING THE PROTECTIVE CAP .
Turn protective cap (1) clockwise to limit position.
Protective cap must audibly lock!

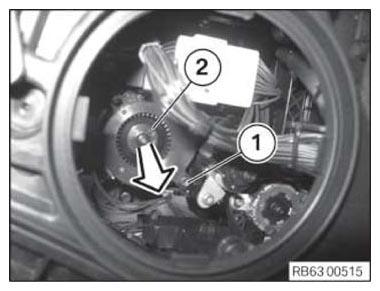

Release screw (1).
Remove LED fan (2) upward.
Unlock and disconnect associated connector.
