63 11 731 Replace LED module for left daytime driving lights (X6 2015-2019)
WARNING:
Observe SAFETY INFORMATION ON HANDLING BULBS/LIGHT SOURCES (EXTERIOR LIGHTS) .
IMPORTANT:
Read and comply with INFORMATION ON PROTECTION AGAINST ELECTROSTATIC DISCHARGE
!
IMPORTANT:
Always replace LED modules as a pair.
Necessary preliminary tasks:
- Remove BUMPER PANEL .

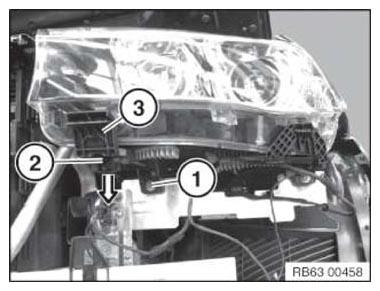

LED module, inner:
Release screw (1).
Release screw (2).
Remove mounting for bumper panel (3) in direction of arrow.

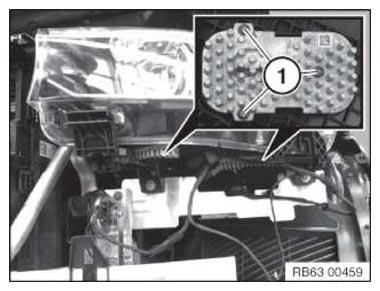

Slacken screws (1) at LED module.

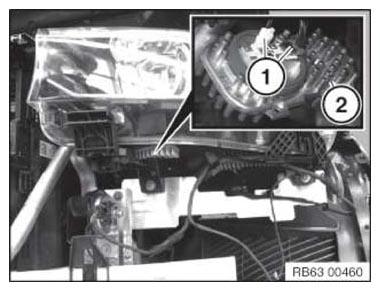

LED module, inner:
Pull LED module (2) downwards out of headlight.
Disconnect both connectors (1).
Remove LED module (2).
Installation note:
Make sure LED module (2) is seated correctly.

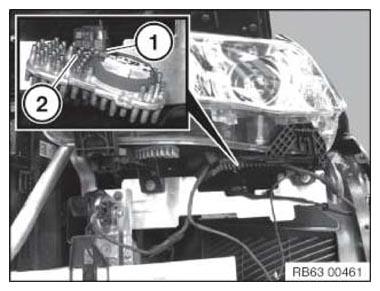

LED module, outer:
Pull LED module (2) downwards out of headlight.
Disconnect connector (1).
Remove LED module (2).
Installation note:
Make sure LED module (2) is seated correctly.
