51 24 133 Removing and installing/replacing Automatic Soft Close drive on tailgate (Automatic Soft Closing) (X6 2015-2019)

Necessary preliminary tasks:

• Remove LASHING RAIL FROM LUGGAGE COMPARTMENT FLOOR AT LEFT .
• Remove THE COVER FROM THE TOP TAIL PANEL .
• Lift off cover from soft-close automatic drive

Removal:

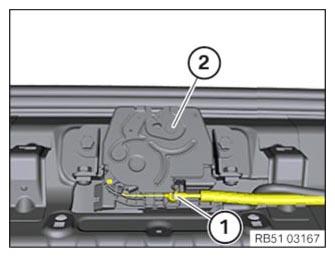

Detach Bowden cable (1) from tailgate lock (2).

Unfasten plug connection (1) and disconnect.

Feed out drive (2) with Bowden cable (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in drive (2) with Bowden cable (3).

Connect and lock plug connection (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Attach Bowden cable (1) to tailgate lock (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Mount LASHING RAIL TO LUGGAGE COMPARTMENT FLOOR AT LEFT .
• Install TRIM ON TAIL PANEL AT TOP .
• Mount cover to soft-close automatic drive
