51 12 825 Removing and installing/replacing guide for rear center bumper (X6 2015-2019)

Necessary preliminary tasks:

• Remove BUMPER PANEL .

Removal:

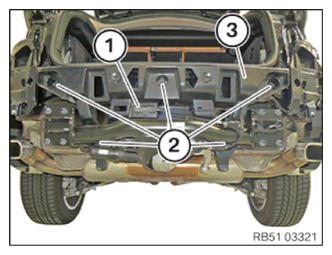

Feed out bumper antenna (1) along with wiring harness.

Remove nuts (2) and remove guide (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Mount guide (3) and tighten nuts (2).

Tightening torque 51 12 2AZ .

Thread in bumper antenna (1) along with wiring harness.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Mount BUMPER PANEL .
