Removing and installing/replacing pressure sensor on left charge air cooler (S63 B44 T 2) (X6 M)

Necessary preliminary tasks:

• Read out the fault memory of the DME control unit.
• Switch off ignition.
• Remove INTAKE SILENCER HOUSING .

Removal:

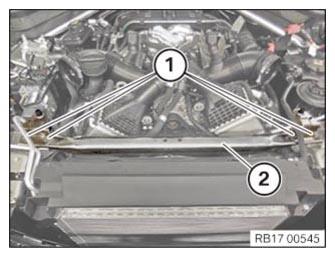

Unclip Bowden cable for bonnet release and cable from fan cowl from transverse reinforcement.

Loosen screws (1).

Remove transverse reinforcement (2).

Courtesy of BMW OF NORTH AMERICA, INC.

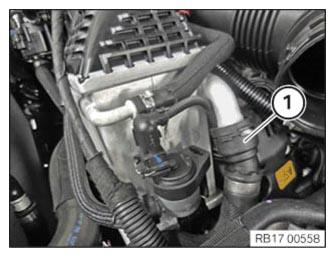

Clamp off coolant hose (1) using pinch-off tool.

Release and pull off coolant hose (1).

Catch and dispose of escaping coolant.

Courtesy of BMW OF NORTH AMERICA, INC.

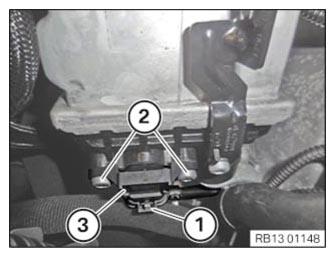

Unlock connector (1) and pull off.

Unfasten screws (2).

Pull pressure sensor (3) out of left charge air cooler.

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation for installation:

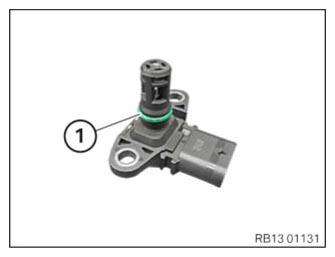

Replace sealing ring (1) on pressure sensor.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install pressure sensor (3) in left charge air cooler.

Tighten down screws (2).

Tightening torque 13 62 7AZ .

Connect connector (1) to pressure sensor and lock.

Connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect coolant hose (1) to left charge air cooler.

The coolant hose (1) must audibly engage.

Courtesy of BMW OF NORTH AMERICA, INC.

Install transverse reinforcement (2).

Parts:  Replace screws.

Tighten down screws (1).

Tightening torque 17 10 4AZ .

Clip Bowden cable for bonnet release and cable from fan cowl to transverse reinforcement.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install INTAKE SILENCER HOUSING .
