Removing and installing/replacing left luggage compartment wheel arch trim (X6 M)

Special tools required:

• 00 9 325

Necessary preliminary tasks:

• Remove TRIM FROM C-PILLAR AT BOTTOM LEFT .
• Remove FLAP IN LUGGAGE COMPARTMENT TRIM PANEL  on left

Removal:

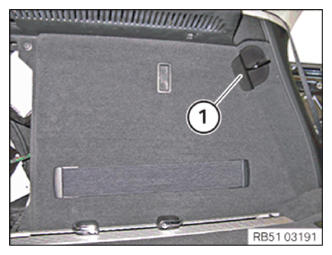

Remove cover (1) using special tool 00 9 325.

Courtesy of BMW OF NORTH AMERICA, INC.

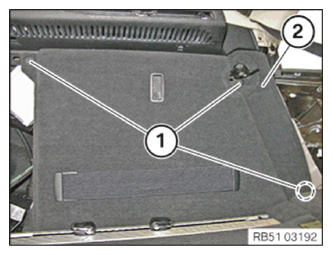

Release clamps (1).

Feed out luggage compartment wheel arch panel (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If replacing with storage compartment package equipment specification:

Remove multifunction hook (1).

Remove tensioning strap (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Saw out openings with an oscillating saw and a straight blade on the molding.

Feed in luggage compartment wheel arch panel (2).

Mount clips (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Install cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install TRIM ONTO C-PILLAR AT BOTTOM LEFT .
• Install FLAP IN LEFT LUGGAGE COMPARTMENT TRIM PANEL .
