Removing and installing/replacing front cupholder (X6 M)

Necessary preliminary tasks:

• Remove BOTH DECORATIVE TRIMS ON CENTER CONSOLE .

F16/F86 only:

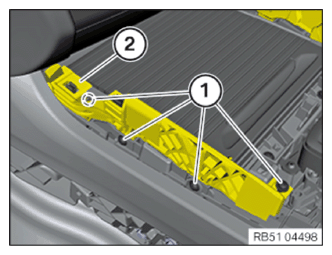

Release left and right screws (1).

Remove holders (2) on left and right.

Courtesy of BMW OF NORTH AMERICA, INC.

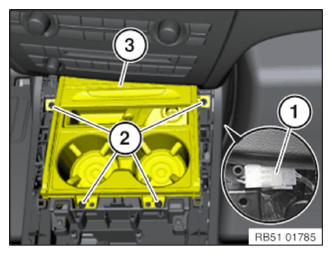

Unfasten plug connection (1) and disconnect.

Detach electrical connector (1) from center console and thread back through.

Undo screws (2) and maneuver out cupholder (3).

Courtesy of BMW OF NORTH AMERICA, INC.
