Removing and installing/replacing actuating unit with control unit for parking brake (EMF) (X6 M)

Necessary preliminary tasks:

REMOVE BOTH REAR WHEELS.

IMPORTANT: Check function of actuator unit. If actuator unit is defective, set diagnosis system to workshop mode. Clear diagnostic fault entries from fault memory.

Operating procedure:
- Carry out vehicle identification.
- Carry out vehicle test .
- Open menu item Actions .
  - Open Service Function .
    - Level 1:
      Select menu item:

      02 Chassis and Suspension
    - Level 2:
      Select menu item:

      Parking Brake
    - Level 3:
      Select menu item:

      Workshop Mode
    - List of matches:
      Workshop Mode
    - Test module/selection:
      Select menu item:

      1 Set Workshop Mode
    - Procedure:
      The message Workshop mode has been set is displayed

Replacement:

If workshop mode cannot be activated for the EMF actuator unit, the Bowden cables must be unlocked using emergency operation.

Open flap in luggage compartment at rear left.

Remove first-aid kit (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Cable for emergency operation (1) must be removed with actuator unit.

Press together both retaining lugs and press cable for emergency operation (1) downwards.

Unclip cable for emergency operation from guides on rear axle.

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and detach wire spring clip (2) on left and right.

Installation note:

Tightening torque 34 41 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage parking brake Bowden cable (1) from holders on left and right.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Version 1:

Turn brake disc into position as illustrated (arrow).

Position screwdriver (1) on brake shoe expander (2) as illustrated.

NOTE: For greater clarity, illustration does not show brake disc.

Pull up parking brake cable behind hub carrier towards brake shoe expander (2) as far as it will go and hold in position.

At the same time, use a standard screwdriver (3) to press nipple (1) in brake shoe expander (2) upwards as far as possible.

Courtesy of BMW OF NORTH AMERICA, INC.

Screwdriver: shank length 40 mm, blade width 4 mm

Pull handbrake cable out of wheel carrier.

NOTE: Cable must not be pulled out before lifting the nipple (1).

Courtesy of BMW OF NORTH AMERICA, INC.

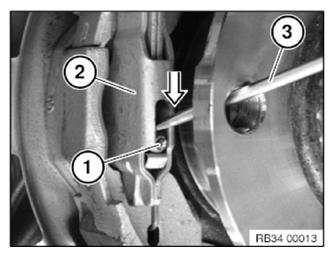

Version 2:

Turn brake disc into position as illustrated (arrow).

Position screwdriver (1) on brake shoe expander (2) as illustrated.

NOTE: For greater clarity, illustration does not show brake disc.

Pull up parking brake cable behind hub carrier towards brake shoe expander (2) as far as it will go and hold in position.

At the same time, use a standard screwdriver (3) to press nipple (1) in brake shoe expander (2) downwards as far as possible.

Courtesy of BMW OF NORTH AMERICA, INC.

Screwdriver: shank length 40 mm, blade width 4 mm

Pull handbrake cable out of wheel carrier.

NOTE: The cable must not be pulled out before the nipple (1) has been pushed down as far as possible.

Installation note:

Grease nipple of parking brake Bowden cable with assembly paste (part number 81 22 9 407 171).

Obtainable from BMW Group Parts.

Feed parking brake cable horizontally into brake anchor plate/brake guard plate. Sleeve must be inserted up to stop.

Nipple of parking brake Bowden cable must audibly snap into place in brake shoe expander.

Disconnect plug connection (1).

Unfasten screws (2).

Installation note:

Tightening torque 34 41 4AZ .

Undo bolts (3) and remove bracket (4).

Installation note:

Tightening torque 34 41 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out actuator unit together with parking brake Bowden cable and cable for emergency operation.

After installation:

Carry out start-up/functional check in diagnosis system.
- Path
  - Activities
  - Service functions
  - Chassis and suspension
  - Parking brake
  - Initial operation/function test

Replacement:

ENCODE/PROGRAM CONTROL UNIT(S)
Carry out parking brake start-up/functional check via diagnostic tool
