Remove and install or replace the left or right B-pillar air duct (X5 M)

Necessary preliminary tasks:

• Remove B-PILLAR TRIM PANEL .

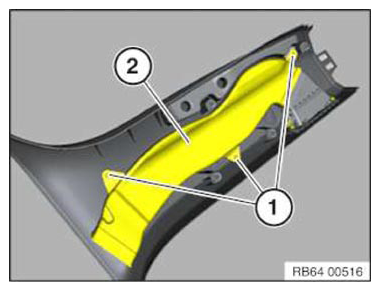

Release screws (1).

Feed out air duct (2).

Courtesy of BMW OF NORTH AMERICA, INC.
