Replacing a rear pulse sensor (X5 M)

Attention!

Read and comply with NOTES ON PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD protection).

Necessary preliminary work:

• Partially detaching the rear WHEEL ARCH PANEL .
• Read and comply with GENERAL NOTES .

Open housing cover (1).

Disconnect plug connection (2).

Installation note:

Ensure proper locking of the plug connector and proper seating of the cable in the brackets.

Courtesy of BMW OF NORTH AMERICA, INC.

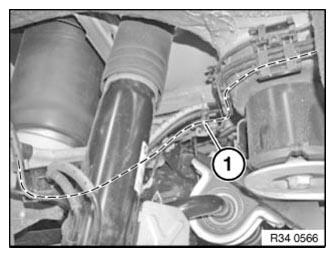

Disengage cable (1) along marked lines from holders.

Installation note:

Ensure proper locking of the holders and proper seating of the cable in the holders.

Courtesy of BMW OF NORTH AMERICA, INC.

Release Torx socket (1).

Withdraw wheel speed sensor (2) from bore hole.

Installation note:

Tightening torque 34 51 3AZ .

Clean the bore hole for the pulse sensor and grease with Staburags NBU 12/lubricating grease.

Attention!

Check sensor head prior to installation for external damage, replacing if necessary.
