Replacing pulse sensor on left intake camshaft (S63 B44 T 2) (X5 M)

(cylinder bank 5 to 8)

Necessary preliminary tasks:

• Read out fault memory of the DME control unit, work through test plans if necessary.
• Switch off ignition.
• Remove ACOUSTIC COVER .

Removal:

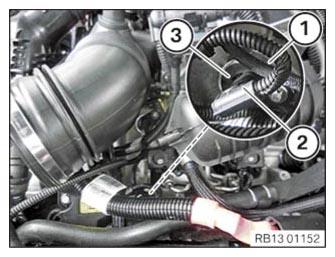

Unlock connector (1) and pull off.

Release screw (2).

Remove pulse generator (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation for installation:

Part:  Replace sealing ring and coat with lubricant.

Installation:

Remove pulse generator (3).

Tighten screw (2).

Tightening torque 13 62 3AZ .

Connect and lock the connector (1).

Connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install the ACOUSTIC COVER .
