51 47 490 Removing and installing/replacing underbody protection (front)
NOTE:

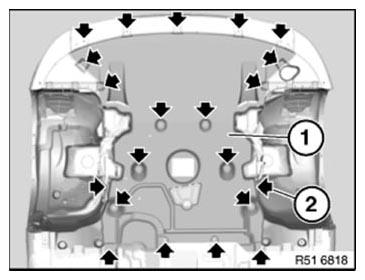

Illustration only an example. Detail deviations, depending on engine version, are possible.
Unfasten screws (2).
Tightening torque 51 75 1AZ .
Remove front underbody protection (1).
