17 11 035 Removing and installing/replacing fan cowl with electric fan (N20, N55)

Necessary preliminary work:

Release screws (1).

Tightening torque 17 10 1AZ .

Unfasten screws (2).

Tightening torque 17 10 2AZ .

Remove cross connection (3).

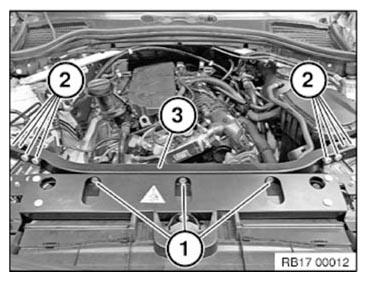

Fig 1: Identifying Fan Cowl Cross Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Only for vehicles with automatic transmission:

Release screw (1).

Tightening torque 17 10 6AZ .

Release transmission oil cooler (2) from the fan cowl.

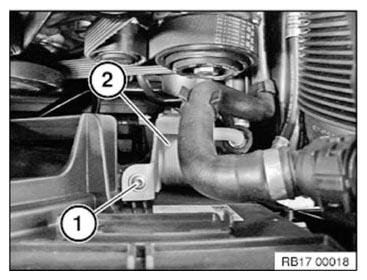

Fig 2: Identifying Transmission Oil Cooler And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 17 10 3AZ .

Unlock and disconnect connectors (2) on fan cowl on right.

Pressing retainer (3) on fan cowl, left.

Detach coolant lines from fan cowl.

Remove fan cowl (4) towards top.

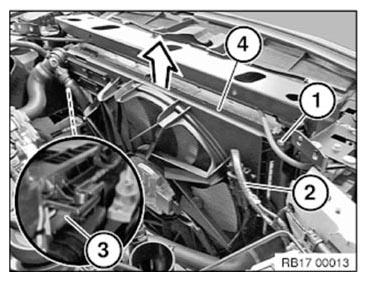

Fig 3: Removing Fan Cowl

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Insert retaining tab (1) at bottom on module carrier.

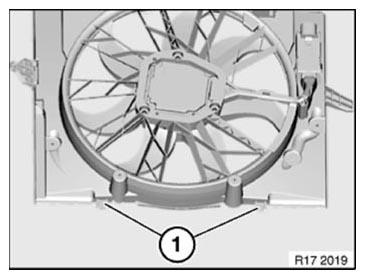

Fig 4: Identifying Fan Cowl Module Carrier Retaining Tab

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault message.

Reassemble the vehicle.

Clear diagnostic fault entries from fault memory.
