51 13 045 Removing and installing/replacing front side panel trim on left or right

Removal:

Slide trim (1) backwards slightly and lift out forwards.

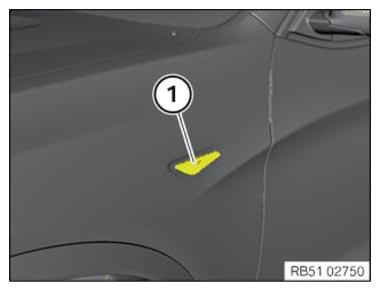

Fig 1: Identifying Front Side Panel Trim
G11172598Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

First thread trim (1) in at rear and press in at front.

Fig 2: Identifying Front Side Panel Trim
G11172598Courtesy of BMW OF NORTH AMERICA, INC.
