22 11 110 Replacing left engine support arm (N20)
Necessary preliminary tasks:
- Secure engine in INSTALLATION POSITION
- Remove rear UNDERBODY PROTECTION ASSEMBLY
- Remove REINFORCEMENT PLATE
- Partially detach wheel arch trim panel on rear left

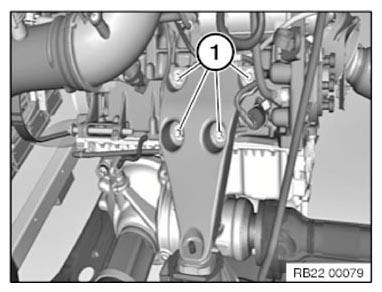

Release screws (1).
Remove engine support arm.
Tightening torque 22 11 3AZ .
