22 11 100 Replacing right engine support arm (N20)

Necessary preliminary tasks:

• Secure engine in INSTALLATION POSITION
• Remove the REAR UNDERBODY PROTECTION
• Remove REINFORCEMENT PLATE

Release screws (1).

Remove engine support arm.

Tightening torque 22 11 3AZ .

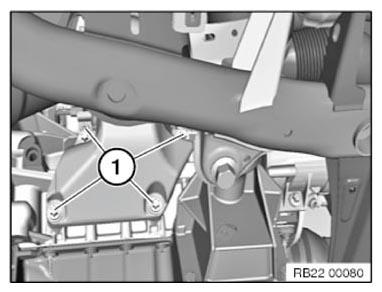

Fig 1: Identifying Engine Support Arm Screws

Courtesy of BMW OF NORTH AMERICA, INC.
