13 71 150 Removing clean air pipe (N47 D20 O1)

Necessary preliminary work:

At the clean air pipe (1), undo the clamps (2).

Pull the clean air pipe (1) off the intake filter housing.

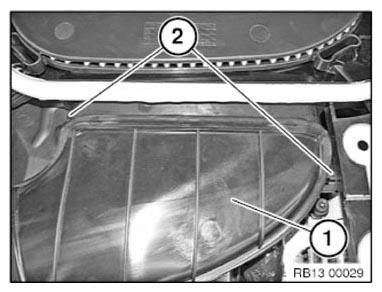

Fig 1: Identifying Air Pipe And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connector on hot film air mass meter and pull off.

Release clamp (2).

Tightening torque: 13 71 3AZ .

Feed out upper part of clean air pipe towards top and remove.

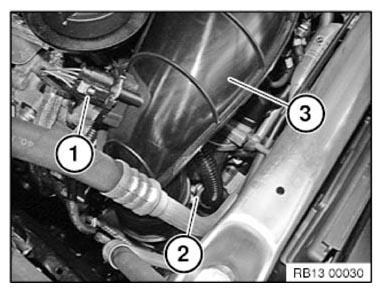

Fig 2: Identifying Clamp And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Press down locking hook and detach hose (2) for engine ventilation.

With the heating element installed, unlock connector from heating element and pull off.

Release screw (2).

Tightening torque: 13 71 4AZ .

Release clip (3) on exhaust turbocharger and detach bottom section of clean air pipe, feed out and remove upwards.

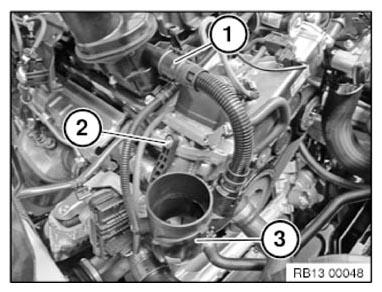

Fig 3: Identifying Hose, Screw And Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
