11 66 000 Removing and installing or replacing vacuum/oil pump (N47 D20 O1)

Special tools required:

IMPORTANT: It is possible to remove and install the vacuum oil pump without removing the transmission.

Necessary preliminary tasks:

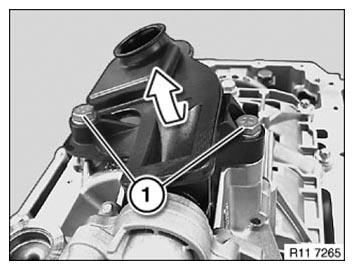

Release screws (1).

Remove intake snorkel in direction of arrow.

Fig 1: Removing Intake Snorkel

Courtesy of BMW OF NORTH AMERICA, INC.

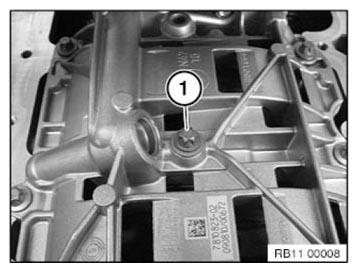

Release screw (1).

Fig 2: Identifying Screw

Courtesy of BMW OF NORTH AMERICA, INC.

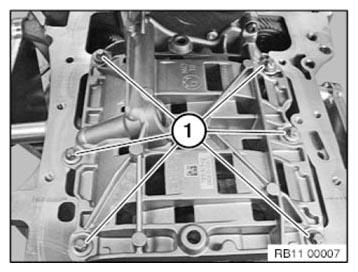

Release screws (1).

Installation note:

Clean and blow out the thread

Fig 3: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

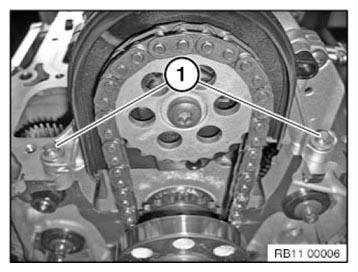

Release screws (1).

When installed, the oil pump chain must be fed out from the sprocket wheel of the oil pump drive gear; the sprocket wheel cannot be removed.

NOTE: Illustration shows gear case cover removed.

Fig 4: Identifying Gear Case Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

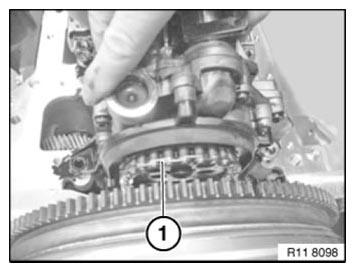

Oil vacuum pump must be fed out at chain drive (1).

Fig 5: Identifying Chain Drive

Courtesy of BMW OF NORTH AMERICA, INC.

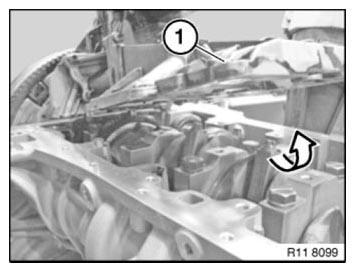

Feed out oil vacuum pump (1) in direction of arrow and remove.

Installation in reverse sequence.

Installation note:

Clean all sealing surfaces.

Fig 6: Removing Oil Vacuum Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace O-ring.

Install all screws (1) and tighten down.

Tightening torque: 11 41 1AZ .

Fig 7: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Install and tighten down screws (1).

Fig 8: Identifying Gear Case Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clean and blow out the thread

Insert and secure screw (1).

Secure screw (1) with special tool 00 9 120 .

Tightening torque: 11 41 2AZ .

Fig 9: Identifying Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
