64 52 521 (Removing and installing) replacing A/C system compressor (N47N)
Special tools required:
WARNING:
Danger of injury!
Refrigerant circuit is under high pressure!
Observe the safety information for handling the R 134a refrigerant . See 64 50... NOTE FOR HANDLING R134A REFRIGERANT or 64 50... SAFETY INFORMATIONS FOR HANDLING TETRAFLUORETHANE REFRIGERANT R134A !
Avoid contact with refrigerant and refrigerant fluid.
FOLLOW SAFETY INSTRUCTIONS FOR HANDLING REFRIGERANT OIL !
Refrigerant circuit is under high pressure!
Observe the safety information for handling the R 134a refrigerant . See 64 50... NOTE FOR HANDLING R134A REFRIGERANT or 64 50... SAFETY INFORMATIONS FOR HANDLING TETRAFLUORETHANE REFRIGERANT R134A !
Avoid contact with refrigerant and refrigerant fluid.
FOLLOW SAFETY INSTRUCTIONS FOR HANDLING REFRIGERANT OIL !
IMPORTANT:
Risk of damage!
Restart engine only when A/C system has been correctly filled.
Read and comply with notes on compressor replacement . See 64 52... NOTES FOR CHANGING THE AIR CONDITIONING COMPRESSOR (AMOUNT OF REFRIGERANT OIL OF NEW AIR CONDITIONING COMPRESSOR NOT KNOWN) or 64 52... NOTES FOR CHANGING THE AIR CONDITIONING COMPRESSOR (AMOUNT OF REFRIGERANT OIL OF NEW AIR CONDITIONING COMPRESSOR KNOWN) .
FOLLOW INSTRUCTIONS FOR OPENING AND REPLACING PARTS IN REFRIGERANT CIRCUIT .
If Air conditioning is opened for more than 24 h:
REPLACE DESICCANT INSERT FOR HEATING AND AIR CONDITIONING SYSTEM
Restart engine only when A/C system has been correctly filled.
Read and comply with notes on compressor replacement . See 64 52... NOTES FOR CHANGING THE AIR CONDITIONING COMPRESSOR (AMOUNT OF REFRIGERANT OIL OF NEW AIR CONDITIONING COMPRESSOR NOT KNOWN) or 64 52... NOTES FOR CHANGING THE AIR CONDITIONING COMPRESSOR (AMOUNT OF REFRIGERANT OIL OF NEW AIR CONDITIONING COMPRESSOR KNOWN) .
FOLLOW INSTRUCTIONS FOR OPENING AND REPLACING PARTS IN REFRIGERANT CIRCUIT .
If Air conditioning is opened for more than 24 h:
REPLACE DESICCANT INSERT FOR HEATING AND AIR CONDITIONING SYSTEM
Necessary preliminary tasks:
IMPORTANT:
Seal openings or lines on compressor with special tool 32 1 270
to prevent escape of media and fouling.

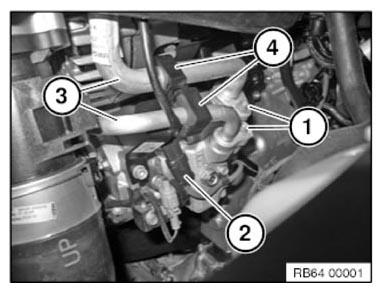

Release screws (1) on refrigerant lines (3).
Tightening torque 64 53 4AZ .
Open brackets (4).
Disconnect refrigerant lines (3) and lay to one side.
Unfasten plug connection (2) and disconnect.

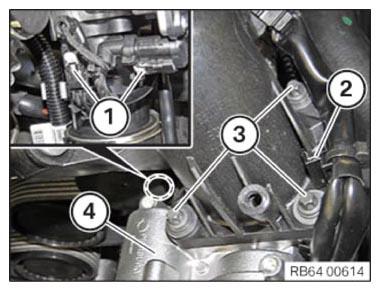

Unlock plug connections (1) and disconnect.
Unclip cable clip (2).
Release screws (3) and place throttle valve (4) to one side.
Release screws (2) on compressor (1).
Tightening torque 64 52 3AZ .
Feed out compressor (1) in direction of arrow.
Replacement:
- Adjust the amount of refrigerant oil in the new compressor . See 64 52... NOTES FOR CHANGING THE AIR CONDITIONING COMPRESSOR (AMOUNT OF REFRIGERANT OIL OF NEW AIR CONDITIONING COMPRESSOR NOT KNOWN) or 64 52... NOTES FOR CHANGING THE AIR CONDITIONING COMPRESSOR (AMOUNT OF REFRIGERANT OIL OF NEW AIR CONDITIONING COMPRESSOR KNOWN)
IMPORTANT:
Danger of compressor damage!
Danger of customer complaints due to reduced cooling power of the Air conditioning!
Before the installation of the new compressor, it is absolutely necessary to adjust the amount of refrigerant oil in the new compressor!
Compliance with safety information is mandatory . See 64 52... NOTES FOR CHANGING THE AIR CONDITIONING COMPRESSOR (AMOUNT OF REFRIGERANT OIL OF NEW AIR CONDITIONING COMPRESSOR NOT KNOWN) or 64 52... NOTES FOR CHANGING THE AIR CONDITIONING COMPRESSOR (AMOUNT OF REFRIGERANT OIL OF NEW AIR CONDITIONING COMPRESSOR KNOWN) !
Danger of customer complaints due to reduced cooling power of the Air conditioning!
Before the installation of the new compressor, it is absolutely necessary to adjust the amount of refrigerant oil in the new compressor!
Compliance with safety information is mandatory . See 64 52... NOTES FOR CHANGING THE AIR CONDITIONING COMPRESSOR (AMOUNT OF REFRIGERANT OIL OF NEW AIR CONDITIONING COMPRESSOR NOT KNOWN) or 64 52... NOTES FOR CHANGING THE AIR CONDITIONING COMPRESSOR (AMOUNT OF REFRIGERANT OIL OF NEW AIR CONDITIONING COMPRESSOR KNOWN) !
After installation:
