11 61 368 Removing and installing/replacing left-hand charge air duct (N55)

Necessary preliminary tasks:

Installation note:

Ensure locking clamps are correctly fitted.

Lock must engage.

Fig 1: Identifying Charge Air Duct Locking Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock snap fasteners (1).

Unclip vacuum hose (2) and lay to one side.

Disconnect plug connection (3).

Pull charge air duct out of rubber grommet (4).

Remove charge air duct.

Installation note:

plug connection (3) must snap audibly into place!

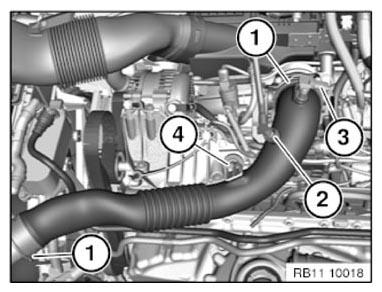

Fig 2: Identifying Charge Air Duct Of Rubber Grommet And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
