11 12 090 Removing and installing/renewing acoustic cover (N20)

Unlock and pull off vacuum connections (1) and (2) from vacuum accumulator.

Fig 1: Identifying Vacuum Connections And Accumulator

Courtesy of BMW OF NORTH AMERICA, INC.

If the hose clips (1) are not installed, they must be retrofitted.

Part Number 66 13 1 379 229

Fig 2: Identifying Hose Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Remove acoustic cover (1) in following steps:

• Lift up in the front area.
• Pull out from rear rubber guide in direction of travel.

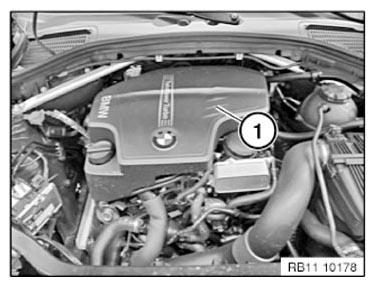

  Fig 3: Identifying Acoustic Cover

  Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Insert acoustic cover into existing rubber mounts.

Fig 4: Identifying Acoustic Cover And Rubber Mounts

Courtesy of BMW OF NORTH AMERICA, INC.
