13 71... Removing acoustic cover (B38, B46, B48)

Removal:

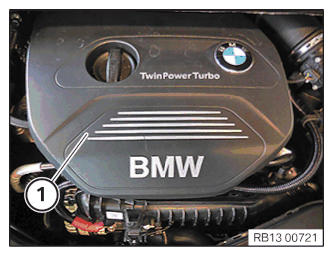

Pull acoustic cover (1) up and out of the rubber mount and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Ensure rubber mount is correctly fitted on acoustic cover.

Courtesy of BMW OF NORTH AMERICA, INC.

Attach acoustic cover (1) to the locating pins and engage.

Acoustic cover (1) must audibly snap into place.

Courtesy of BMW OF NORTH AMERICA, INC.
