REP-TAT-P-5171-01 Remove front wheel arch cover

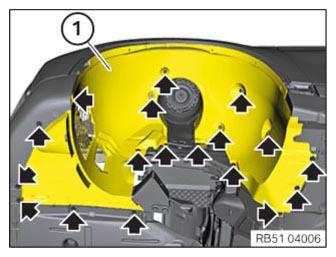

Unscrew all bolts and nuts (arrows).
Guide the wheel arch cover (1) out.

G12956871

Courtesy of BMW OF NORTH AMERICA, INC.
