Fuse And Relay Location -- (3' Series And 4' Series: F30, F30H, F31, F32, F33, F34, F36, F80; F82, F83)
>>
Fuse And Relay Location (3' Series And 4' Series: F30, F30H, F31, F32, F33, F34, F36, F80; F82, F83)
>>
Z7 Power distribution box, front
Z7 Power distribution box, front

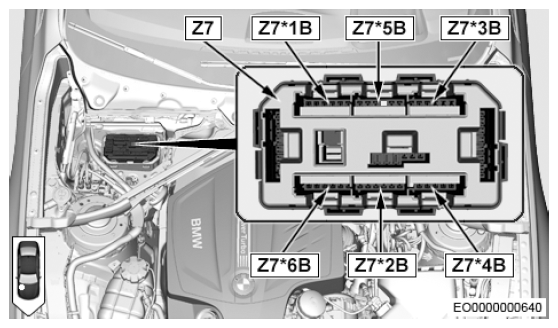

Fig 1: Z7 Power Distribution Box, Front Fuse/Relay ID'S Location (1 Of 4)
Courtesy of BMW OF NORTH AMERICA, INC.

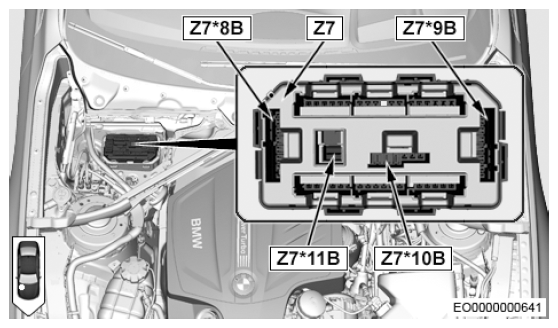

Fig 2: Z7 Power Distribution Box, Front Fuse/Relay ID'S Location (2 Of 4)
Courtesy of BMW OF NORTH AMERICA, INC.

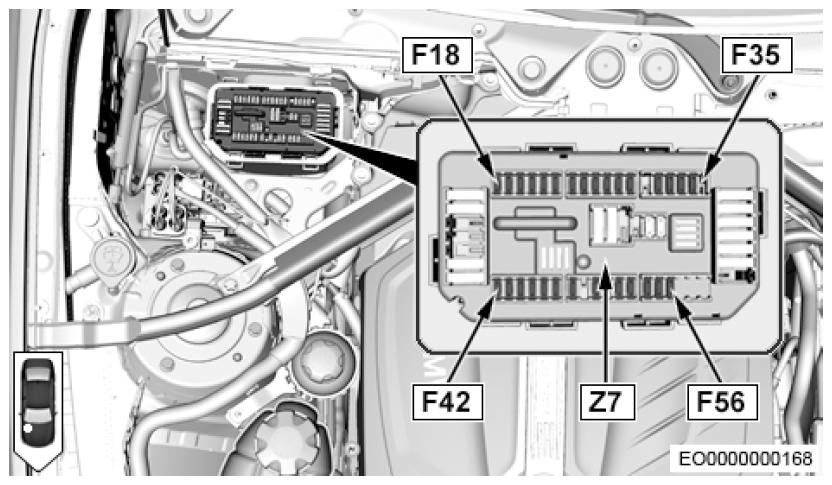

Fig 3: Z7 Power Distribution Box, Front Fuse/Relay ID'S Location (3 Of 4)
Courtesy of BMW OF NORTH AMERICA, INC.

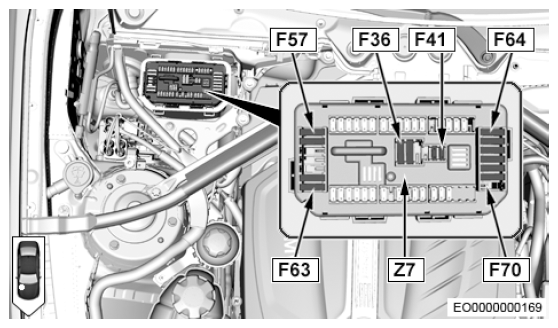

Fig 4: Z7 Power Distribution Box, Front Fuse/Relay ID'S Location (4 Of 4)
Courtesy of BMW OF NORTH AMERICA, INC.
