Removing and installing/replacing front (inside) left or right door sill cover strip (M4 Coupe, M4 Convertible)

Special tools required:

Attention!

Do not raise door sill cover strip (1) over entire length simultaneously.

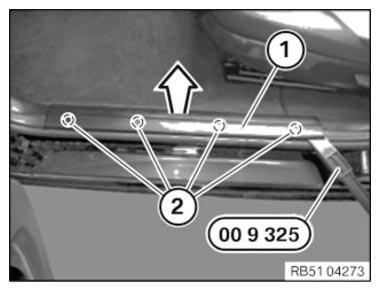

Unclip rear door sill cover strip (1) from clips (2) starting from the rear with special tool 00 9 325.

G11173341Courtesy of BMW OF NORTH AMERICA, INC.

If necessary lift clip (1) from floor panel (2) and clip on door sill cover strip.

G06202830Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace defective clips (1) on door sill cover strip (2).

G06202831Courtesy of BMW OF NORTH AMERICA, INC.
