Removing and installing or replacing window cavity cover strip on outside of left or right front door (M4 Coupe, M4 Convertible)
Special tools required:
- 00 9 324
Installation note:
Observe procedure for USING SPECIAL TOOL 00 9 324 .
The instructions on INSTALLATION OF WINDOW GUIDES serve as the basis for this repair instructions and must be observed without fail.
Risk of damage!
If reusing the existing window cavity cover strip (1), make sure it is not bent.
Lever out weather strip (1) using special tool 00 9 324 (starting at B-pillar).

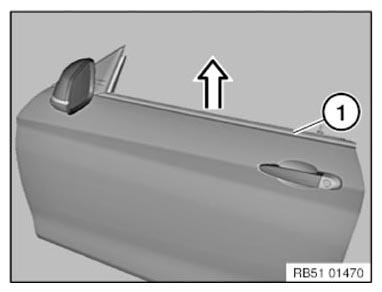

Pull out weather strip (1) from exterior mirror (2) in direction of arrow.
Installation note:
Moisten weatherstrip (1) before installation with APPROVED LUBRICANT .
