51 16 001 Removing and installing/replacing mirror on left or right front door

Necessary preliminary tasks:

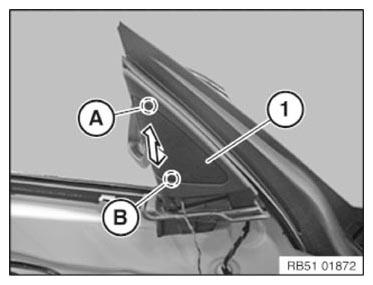

First unclip trim (1) inwards in area (A), the feed out upwards in area (B).

Fig 1: Removing Front Door Trim

Courtesy of BMW OF NORTH AMERICA, INC.

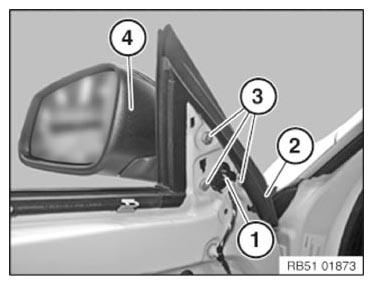

IMPORTANT: Secure the mirror (4) against falling.

Unfasten plug connection (1) and disconnect.

Press sealing (2) aside slightly.

Undo the screws (3) and remove the mirror (4).

Tightening torque: 51 16 1AZ .

Fig 2: Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

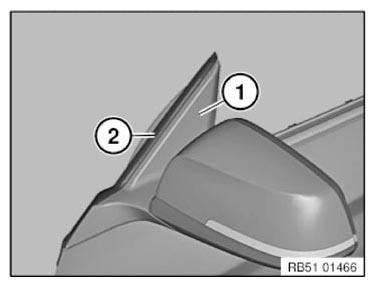

Make sure exterior mirror (1) is correctly fitted on sealing (2).

Fig 3: Exterior Mirror On Sealing

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
