51 41 017 Removing and installing or replacing cover on door handle, front left or right

Special tools required:

IMPORTANT: Risk of damage!
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Insert special tool 00 9 321 from below into recess of cover (1).

Lever out cover (1) with special tool 00 9 321 at clamps (2).

Feed out cover (1) downwards from retaining hooks (3).

Installation note:

Firstly feed in cover (1) with retaining hook (3) into door trim panel, then clip into door trim panel.

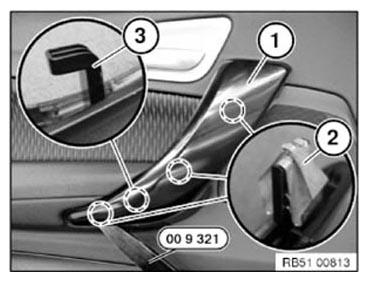

Fig 1: Removing Left/Right Front Door Handle Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Following parts of cover must not be damaged or missing.

Latch mechanism
Clamps
Retaining hook

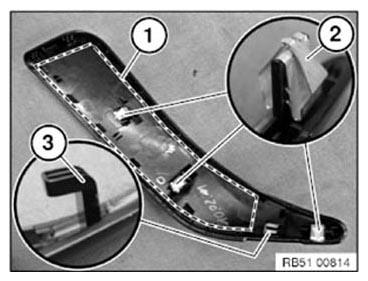

Fig 2: Installing Left/Right Front Door Handle Cover
Courtesy of BMW OF NORTH AMERICA, INC.
