51 11 183 Removing and installing (replacing) ornamental grille for bumper panel (side)

Special tools required:

NOTE: Tape off painted surfaces in working area and protect against damage.

Disengage ornamental grille (1) with special tool 00 9 325 along line (2).

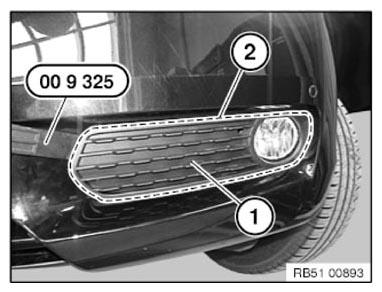

Fig 1: Disengaging Ornamental Grille With Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining lugs (1) must not be damaged or missing.

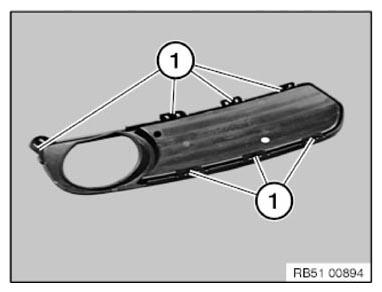

Fig 2: Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
