51 71 015 Removing and installing/replacing left or right underbody panelling
Necessary preliminary tasks:
- Remove REAR UNDERBODY PROTECTION

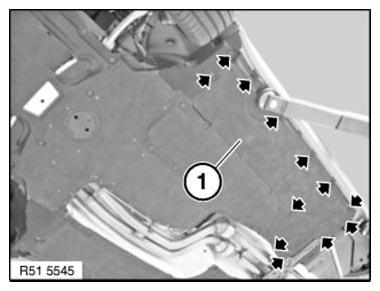

Unscrew all bolts.
Tightening torque 51 75 1AZ .
Remove underbody panelling (1).
Installation note:
Make sure underbody panelling (1) is correctly seated.
