41 00... Overview Of Adhesive Cartridge Guns

WARNING: This page is about a different car, the 2015 BMW ActiveHybrid 7, 2014 BMW ActiveHybrid 7, and 2013 BMW ActiveHybrid 7. However, it is still accessible from the selected car via links, so may be relevant.

Adhesive gun 83 19 2 149 522

Usable for adhesives K4, K5a.

Usable for BMW 2K polyurethane foam.

Including insert 1:1 and 2:1.

Fig 1: Identifying Adhesive Gun (83 19 2 149 522)

G09850048

Courtesy of BMW OF NORTH AMERICA, INC.

Adhesive gun 81 49 0 443 166

Usable for adhesive K3.

Fig 2: Identifying Adhesive Gun (81 49 0 443 166)

G09850049

Courtesy of BMW OF NORTH AMERICA, INC.

Adhesive cartridge gun 81 49 2 213 059

Usable for adhesives K1, K5b,

sealant D1/D2, window glass adhesive and all 310 ml Euro cartridges.

Fig 3: Identifying Adhesive Cartridge Gun (81 49 2 213 059)

G09850050

Courtesy of BMW OF NORTH AMERICA, INC.

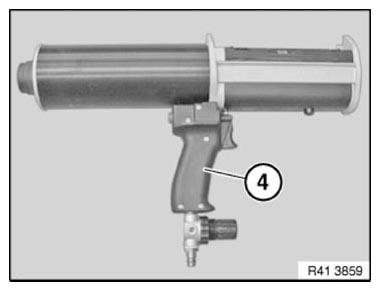

Adhesive cartridge gun 83 30 0 494 836

Usable for structural foam HS2.

NOTE: Special tool number 41 3 010

Fig 4: Identifying Adhesive Cartridge Gun (83 30 0 494 836)

G09850051

Courtesy of BMW OF NORTH AMERICA, INC.

Adhesive cartridge gun 81 49 2 355 475

Usable for adhesive K2 (2x290 ml glue cartridge)

Fig 5: Identifying Adhesive Cartridge Gun (81 49 2 355 475)

G09850047

Courtesy of BMW OF NORTH AMERICA, INC.
