513040 Device AM

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2019 BMW M6 Gran Coupe, 2019 BMW 650i Gran Coupe xDrive, 2019 BMW 650i Gran Coupe, 2019 BMW 640i Gran Coupe xDrive, and 2019 BMW 640i Gran Coupe. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For pressing down the glued window glass

Consisting of:

1 = 0492615 Pipe

NOTE: (Transverse pipe)

2 = 0492616 Gauge

NOTE: (Positioning eyes)

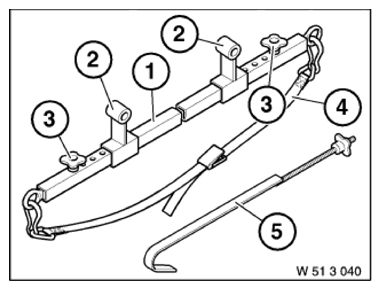

Fig 1: Identifying Device (513040)

Courtesy of BMW OF NORTH AMERICA, INC.

3 = 0492617 Screw

NOTE: (Star bolt)

4 = 0492618 Belt

NOTE: (Lashing strap)

5 = 0492619 Hook

NOTE: (Drawing hook)
