2407668 Mandrel Minimum set: Mechanical tools AM: Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 BMW M6 Gran Coupe, 2018 BMW M6 Gran Coupe, 2017 BMW M6 Gran Coupe, 2016 BMW M6 Gran Coupe, and 2015 BMW M6 Gran Coupe. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For installing the left radial shaft seal output shaft. Contour-graphic silhouette foil is included in the delivery specification.

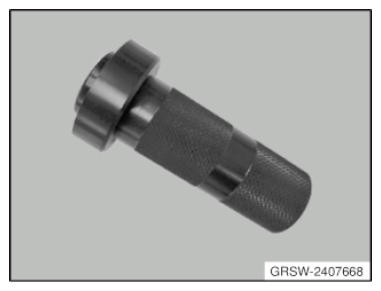

Fig 1: Identifying Mandrel (2407668)

Courtesy of BMW OF NORTH AMERICA, INC.
