51 16 041 Removing and installing/replacing cover cap on left or right exterior mirror

Special tools required:

Necessary preliminary work:

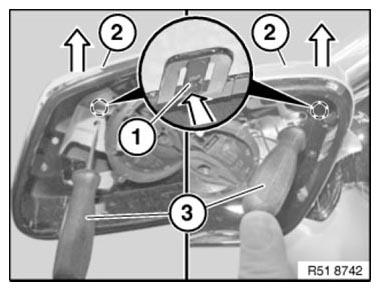

Release cover cap (2) at catches (1) using suitable tool (3).

Fig 1: Releasing Cover Cap At Catches Using Suitable Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Secure cover cap (2) against falling off.

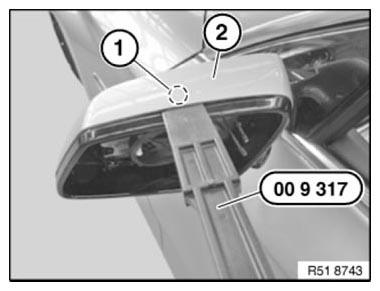

Release catch (1) using special tool 00 9 317 and carefully pull cover cap (2) upwards and remove.

Fig 2: Releasing Catch Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Catches (1) and guides (2) on cover cap (3) must not be damaged.

Fig 3: Identifying Catches, Guides And Cover Cap

Courtesy of BMW OF NORTH AMERICA, INC.
