63 21 170 Removing and installing/replacing left or right rear light (on tailgate)

Necessary preliminary tasks:

• Remove COMPLETE REAR CENTER TRIM

Unscrew nuts (1).

Disconnect plug connection (2).

Remove rear light (3).

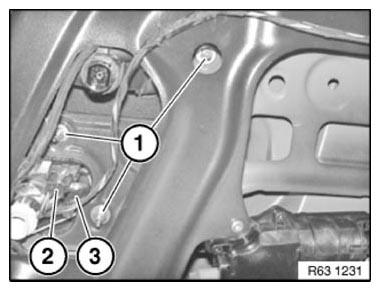

Fig 1: Identifying Nuts And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, remove BULBS .

If necessary, replace CHROME TRIM .
