63 31 003 Removing and installing/replacing complete interior roof light (rear)

Special tools required:

• 00 9 317

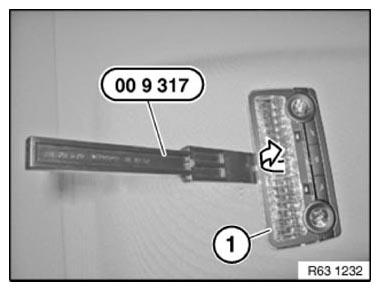

Carefully lever out interior roof light (1) in direction of arrow with special tool 00 9 317 .

Fig 1: Removing Interior Roof Light Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

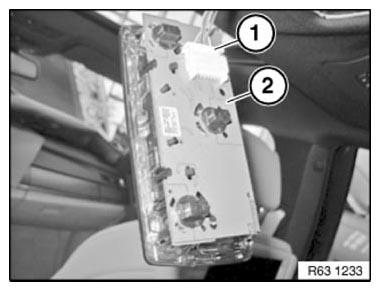

Disconnect plug connection (1) and remove roof light (2).

Fig 2: Identifying Plug Connection And Roof Light

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

• If necessary, remove bulbs

Note BULB TYPE
