Installing the oil deflector

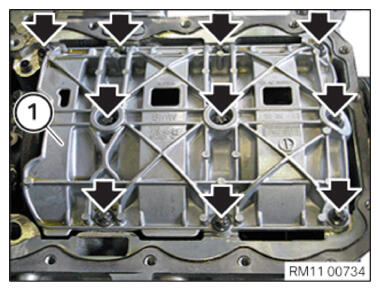

- Install the oil deflector (1)
.
- Replace the screws (arrows).
Parts:
Screws
- Tighten all the screws (arrows) crosswise.
TIGHTENING TORQUE SPECIFICATIONS
| Oil deflector to crankcase |
| M8 x 35 |
Replace screws. |
15 Nm |
| 45° |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
